Device description

Our fruit and vegetable spray washing machine is suitable for all kinds of fresh fruits, vegetables, salted vegetables, fungi and seafood. The cleaning machine in the process of conveying, strengthen the function of spray cleaning, before the completion of material after cleaning, after spray cleaning, the function of this procedure is remove dirty on the surface of the material to replace, improve the cleaning effect of material, at the same time, external cleaning spray water on to secondary material after cleaning, the water flow into the water bath slot, added to replace water bath tank washing water, maintain the cleanness of waterbath the internal quality, improve the utilization of clean water, and increased the cleaning effect.

Working principle

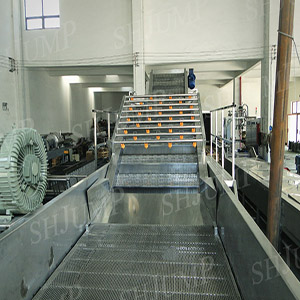

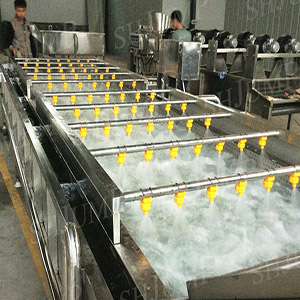

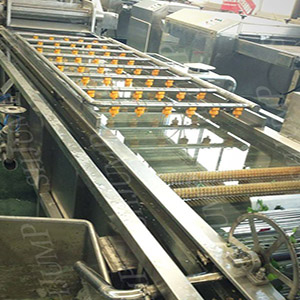

The equipment is made up of net belt conveyor hoist, spray washer and sink, and the material is sent to the sprinkler area through the net belt conveyor, and the upper and lower pressure is flushed. The high-pressure spray pipe is installed in the upper end of the spray pipe. The high-pressure nozzle is installed on the spray pipe and the water is cleaned under the action of the water pump. Install the filter tank, overflow nozzle, use water to pass the impurity into the filter layer through the hole in the double tank, and the inside of the filter layer can be recycled after entering the circulating water tank.

Technical parameters

Equipment features

1. The main body of the equipment is made of SUS304 stainless steel. The cleaning effect is good, and the original color of fruit and vegetable products can be kept.

2. It can be customized according to the processing characteristics of the users, and the maximum extent can meet the process requirements.

3. Cleaning machine adopts high pressure water bubble bath type cleaning, not damaged materials. After the spray is washed, the lift is transported to the next process.

4. Medium water can be filtered and recycled, with high cleaning efficiency, strong practicability and energy saving.

5. Can be used single machine, but also can cooperate with assembly line work. Additional lifting devices can be added according to requirements.
