Device description

Using spline connection between the screw axis, and to ensure that the spline shaft interchangeability, easy maintenance, intermediate bearing bearing a PM materials, has the extremely high self lubrication and wear resistance, the intermediate shaft and shaft sleeve is made of super wear resistant material, long service life, is used by another kind of powder metallurgy die casting oil bearing, which used in the occasions of high temperature.

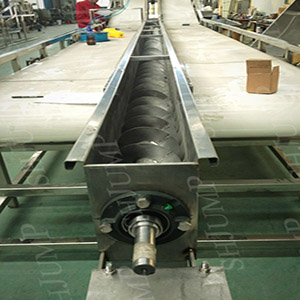

Shell form: "O" type or "U" type;

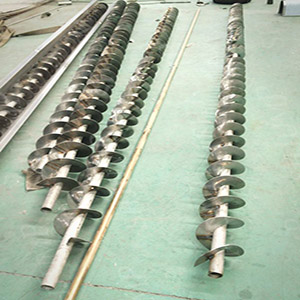

Spiral form: no axial, uniaxial or multi-axis;

Working principle

Screw conveyor is the use of the motor drive screw rotation, goes on material to attain the goal of conveying machinery, has the advantages of simple structure, small cross-sectional area, facilitate closed transmission, can be more loading or unloading, etc.

Technical parameters

Product name fruit and vegetable spiral conveyor

Equipment model JP-LX series

Main material food grade SUS304 high quality stainless steel (or customized according to customer requirements)

Processing capacity 0.1 ton/hour to 10 tons/hour (or customized according to customer requirements)

Size specification according to customer requirements

The equipment is applicable to the transportation of fruit and vegetable residue

Applicable to all fruits and vegetables residue, customizable

Equipment features

1. Large carrying capacity and safe and reliable.

2. Strong adaptability, convenient installation and maintenance, long life.

3. Small volume, high speed, ensuring fast and uniform delivery.

4. The sealing is good and the shell is made of seamless steel tube. The end part is connected to each other by flanges and is rigid.

5. Simple structure, low cost, small size, safe and convenient operation, can be sealed during operation. It's an ideal delivery device.
