This machine is mainly used for removing the core of peach, apricot, cherries, and other fruits at normal temperature. It is one of the key equipment in the juice and pulp production line.

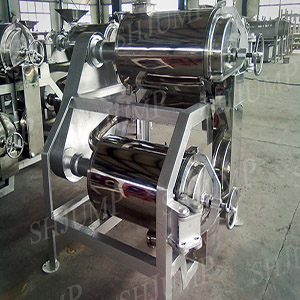

Remove the core of peaches and apricots by rotating the roller and rubber roller, and get the lumpy flesh. The spacing between the two rolls depends on the fruit. The fruit is fed into the hopper by the former device, which is driven by the crank-link mechanism to push the fruit into the two rollers. The two rollers turn against each other, and most of the flesh of the fruit is pressed into the crevices of the toothed rolls. The fruit nuclei are squeezed in the elastic rollers, and the comb plates remove the pulp from the gaps between the teeth. The core of the flesh of the flesh enters the washing part to complete the separation.
| product name | fruit core removing machine |
| Model | JPCR-100 |
| Raw material | Food grade 304 stainless steel (or customized according to customer requirements) |
| Processing capacity | 0.5 tons per hour to 10 tons per hour |
| Dimension | 750*500*800 to 1100*800*1600 (unit: mm) |
| Application |
applicable to core-removing of stone fruit,such as peaches, apricots, dates, nuts and walnuts |
(1) sustainable and uninterrupted work has completely solved the difficulties of artificially low nuclear efficiency, labor and time.
(2) to nuclear machine adopts 304 stainless steel structure of thick wall pipe and channel steel welding, make more enhance stability in the operation of the device at startup, all parts are used bolts together, make the equipment in operation and maintenance more convenient and quick.
(3) to nuclear machine, simple and convenient operation, don't have to watch for a long time, a person can manage multiple machines at the same time, the transmission system adopts advanced design concept and standard parts, punching machine tool technology is adopted to improve the stamping nuclear nuclear principle, make each device conform to the highest standard of design, high accur. , and thus to the nuclear effect can reach one hundred percent, and the fruit shape completely the same.
