Device description

This machine can be used to remove the core of apple, pear, kiwi, orange and other fruits. Manually insert the fruit into the screw, the machine will remove the core, and divide into 2 and 4 petals. This machine has simple operation, convenient cleaning, stable performance, safe and reliable, and good peeling effect. It is suitable for food processing plant, unit dining hall and catering industry.

Working principle

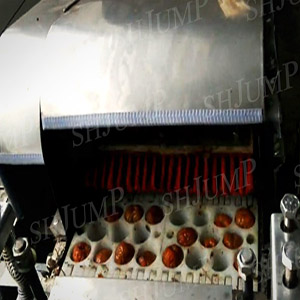

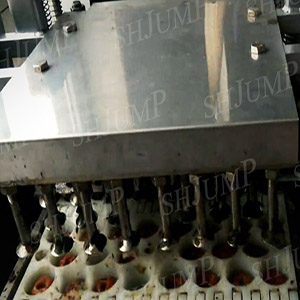

Combined storage hopper and conveyor belt directly, according to different template selected fruit diameter, put the fruit into the storage hopper, only four people to the template so as to achieve the hole into the material, the effect of transmission, good location into the hole after fruit continue to push forward with the delivery of fruit in the process of delivery to promote the use of machine tool technology for drilling core, nucleus into row dustpan automatic flow inside collect together, through nuclear fruit to continue to the next link automatically fall fruit, make out the fruit shape completely the same, inside the fruit falling into the dustpan outflow collected automatically, so as to achieve separation of fruit and nuclear, and fruit cut into two to six disc at the same time.

Technical parameters


Equipment features

1. The standard single time can handle 3 fruits, and can produce up to 600 pieces per hour (8-10 / min); Other production can be customized;

2. Safety door cover design, transparent protection cover, machine immediately stop operation

3. The whole machine includes the paring knife group, the nuclear cutter group, the cutting knife group, the peeling, the cutting, and the cutting of the flap

4. The voltage power will be customized, with CE export certification and exported to Europe and America

5, go nuclear needle device from the original ordinary nuclear principle on the basis of increased the centering device, effectively in the process of to nuclear each a blackberry, jujube, cherry, olive can locate the blackberry, jujube, cherry, the center of the olive nuclear achieve accurate and efficient to go nuclear. This ensures that the integrity of black plum, dates, cherries and olives will not be destroyed.
