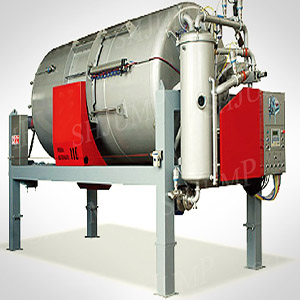

Device description

Mainly used for the juice of berry fruit, can assemble the inert gas protection device, the pressing process is completely isolated from oxygen, eliminate oxidation, it is the equipment to obtain high quality juice. The main engine part adopts 304 stainless steel, the whole machine can be controlled by PLC intelligent control system, which can realize automatic and manual mode switch.

Working principle

The device is equipped with tubular air bags made of advanced non-toxic materials, mounted on a bracket and fixed to a stainless steel cylinder with perforated eyes; The drum is a whole hole, which is twice the area of ordinary juicing. In juicing, the balloon fills the entire surface; Because the juicing area is double the usual juicer, the squeeze time can be greatly shortened, the work cycle and the pressure can be reduced; The product is divided into the pancake layer and the juice is seeping from the entire surface (360 degrees). Based on the above equipment characteristics, the product quality is greatly improved. The material cannot be moved for long during the squeeze process; The maximum pressure of 1.5 bar, only appears at the end of production; The equipment is equipped with a separate compressed air system.

Technical parameters

Equipment features

1. The working procedure is controlled by PLC, which can be adjusted according to the material condition;

2. There is a pulp collecting trough under the press. Once the juice is finished, the residue can be discharged. Because it is not the interior slag design, not frequent blockage, cleaning becomes easier;

3. Equipped with special injection piping system and wide cleaning mouth.
