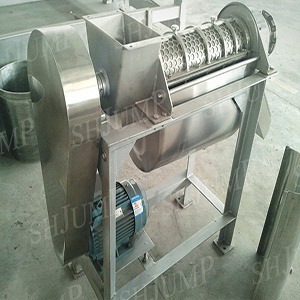

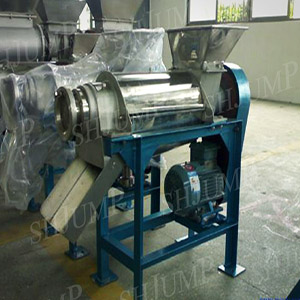

Device description

The screw extractor we produce is mainly used to extract juice from citrus fruits and vegetables. It is a reliable equipment with low cost and multi-function. If you need to extract a variety of products, small batches, screw press is definitely a good choice. It is especially suitable for the juice processing of fruits containing seeds, which will not destroy the seed core and ensure the quality of the fruit juice.

Working principle

Screw extractor by former bearing, into the hopper, screw axis, screen pack, gravy, bearing, slag trough and other parts, after left end screw spindle bearing in the rolling bearing, the right end bearing in hand wheel bearing, motor running through a pair of pulley drive screw axis. Screw shaft clockwise in the direction of the slag is expected to export, bottom diameter pitch by the increasing gradually diminishing, when the material is spiral propulsion shaft for spiral cavity gradually narrowed, thus forming the material crushing. Fruit and vegetable products to join in the hopper, under the screw axis and the advance of extrusion, squeezed the juice through a filter at the bottom of the gravy, and slag by screw axis and the conical part of the surge head formed between the annular gap discharge, pressure regulating head size adjustable gap, to adjust the discharge resistance, can change the rate of slag, the gap regulating head size should be depending on the technological requirements of the fruit and vegetable products processed.

Technical parameters

Equipment features

1. Small investment and quick recovery cost;

2. Automatic control and simple operation;

3. Can be single machine production, can also incorporate production line production;

4. Improve the slag part, which can be suitable for pressing the high fiber materials such as leaf vegetables;

5. Fully automatic finishing berries, fruits and vegetables, such as fruits and vegetables, etc.

6. Overall frame structure, good rigidity, smooth operation and small vibration.
