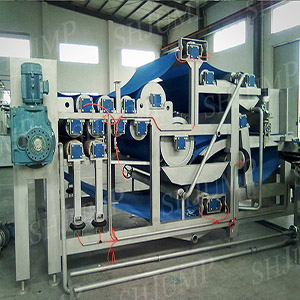

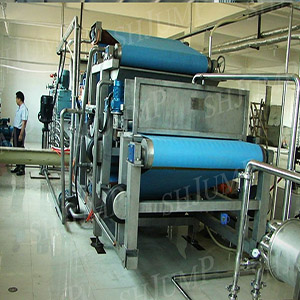

Device description

My company's belt press juicer is an efficient extraction equipment, which is a key equipment in the production of fruit and vegetable juice. It is widely used in the juicing industry of berries, infruit and various vegetables. The equipment adopts multi-level folding and pressure of the pressure and multi-stage pneumatic roller, and the squeezing force is large and the yield is high. After dozens of press machine in multiple factories running practice, on the basis of continuous improvement and improve retrofit, combines the advantages of similar foreign press machine and aiming at the problems like domestic press made many improvements. The machine is widely used, can squeeze the pineapple, apples, pears and other fruit and vegetables after crushing benevolence fruits juice, also can squeeze the watermelon, grape, strawberry, pear, apple, lemon, orange, orange, tomato, papaya, carrots, ginger and so on the many kinds of fruit and vegetable juices, can also be used to pickle, pickles, dehydration, with functions of slag discharge.

Working principle

The machine main machine consists of frame, up and down the drive shaft, slow drive assembly, filter, cleaning components, incoming components, cloth device, tension bridle device, take corrective components, supercharging device, safety device, gas electric control device, cleaning water filtration device, etc. The auxiliary equipment consists of water filter device (including arc net filter, water storage tank), stainless steel vertical multi-stage pump, water jet backflow pump, etc. In the work, the refined raw material (solid-liquid mixture) is continuously pumped into the hopper by the screw pump (the material is adjustable in the bandwidth), which is evenly distributed by the cloth roller. In curved wedge area, a large number of moisture is gently pressure, can press filter cake formation, in the press area, with an "L" type layering roller to press the water out, and ensure the water overflow from both sides soon.

Technical parameters

Equipment features

1. Advanced design, compact structure and beautiful appearance.

2. The machine can squeeze juice without breaking, and complete the process of crushing, juicing and discharging.

3. Adopt belt pressing mode with large capacity and high yield.

4. Efficient energy saving, low noise, no pollution.

5. The material contact part is all food grade material.
