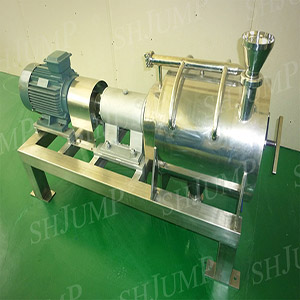

Device description

Fruit and vegetable pulper in fully learn Italian international advanced equipment such as design principle, on the basis of the use of space technology and military equipment, produce at present, the working principle of the most advanced, high manufacturing accur. of beating refiner. It has the characteristics of high slurry rate, convenient operation, large capacity and stable performance. It is mainly used for pulp, skin and seeds of tomato, peach, apricot, mango, apple, kiwi fruit, strawberry, hawthorn, etc., to achieve the separation of pulp and slag. Our company integrates the unique cone-shaped mesh structure of Italy, effectively improving the juice yield by 2% to 3%. The customer can choose a single - way slurry or double - channel slurry, and the screen aperture of the slurry machine can be customized according to the process requirement.

Working principle

Motor through a belt drive, installed on the spline shaft of scraper high-speed rotation, when after the broken fruit through the inlet into the machine, the block pulp tray is to send the material evenly row to scraper and screen mesh. Due to the effect of rotation of the scraper and the existence of the lead Angle, make the material move along the cylinder to the outlet, the moving track of spiraling, material on the scraper and the effect of the centrifugal force in the process of moving between cylindrical screen was chopped, juice and meat is (slurry) from the mesh through into the next procedure, beater for tandem repeat the above process (double), such as the skins and seeds from the slag discharge, in order to achieve the purpose of automatic separation. By changing the screen of different specifications and adjusting the Angle of the scraper, the different slurry speed can be changed to achieve satisfactory results.

Technical parameters

Product model production capacity aperture (mm) rated power (kw) product size (mm)

Custom customization customization

JP-DJ-S-5T 5 tons/hour 0.6 7.5 1650 x 600 x 550

JP-DJ- s-10t 10 tons/hour 0.8 15, 1650 x 700 x 600

JP-DJ- s-15t 15 tons/hour 1.0 18.5 1650 x 800 x 700

Equipment features

1. Automatic separation of slurry.

2. Can be combined in production line and single machine production.

3. Part of contact with materials is made of high quality stainless steel, which is in line with food hygiene
