Device description

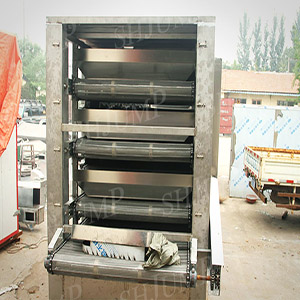

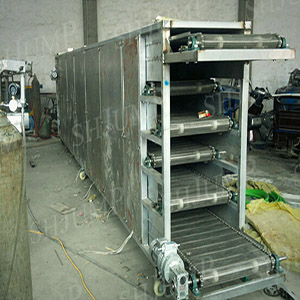

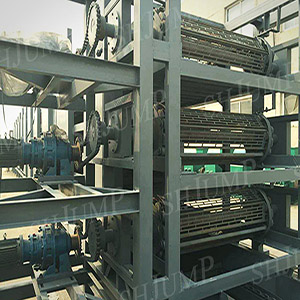

Belt dryer is a kind of dry equipment of batch and continuous production. The main heating method is coal heating, electric heating, steam heating, hot air heating. Its main principle is to put the materials uniform flat out on the chain plate, mesh belt use 3 to 8 mm, between aperture by the transmission device drag moving back and forth inside the drying machine, hot air in the materials passing through, the water vapor from the eduction in the platoon is wet hole, so as to achieve the purpose of drying, the body length is made up by the standard section, in order to save space, the dryer can be made into multi-layer. Mesh belt dryer can use electric drying, coal drying, steam drying, drying a variety of ways, suitable for sheet, cylinder, block, and other forms of material drying, heat transfer area is large permeability is good, service life is long, large drying capacity.
Working principle
The material is spread evenly on the conveyor belt by the feeder, which is moved by the driving device in the dryer. The dryer is composed of a number of units, each of which has a separate cycle of hot air. Some of the exhaust gases are discharged by the special exhaust blower, and the control valve is controlled by each unit when it is discharged from the exhaust gas. The heat and the mass transfer process from the top to bottom or from the bottom to the bottom of the material, taking out the moisture of the material. The net belt moves slowly, the running speed can be adjusted according to the material temperature, and the finished product will fall into the receiver continuously. The upper and lower circulation units are flexibly equipped according to the user needs, and the number of units can be selected according to the need.
Technical parameters
| Product name |
Mesh belt dryer |
| model |
JPRT-100 |
| Raw material |
food grade SUS304 high quality stainless steel (or customized according to customer requirements) |
| Processing capacity |
0.3 tons per hour to 3 tons per hour (or customized according to customer requirements) |
| Dimension |
10500*1200*700 to 22,500 *2000*1800 (mm) |
| Application |
used to dry, dehydrate fruits, vegetables, medicinal materials, etc |
Equipment features
1. Equipped with automatic tensioning device, the net belt runs smoothly and turns freely, thus solving the phenomenon of chain, chain and running deviation.
2. The screen is made of heat-resistant steel wire woven into a network, with high strength, not easy to deform, and good air permeability.
3. The network belt is driven by the motor speed motor, which can adjust the running speed according to the need and control the drying time. The temperature of each section of the dryer is shown to facilitate the control and control of temperature in the kiln.
、
