Device description

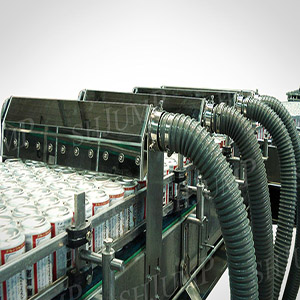

Air knife dryer is undoubtedly one of the most effective tools to blow dry bottles/cans. It USES the wind tunnel effect skillfully to improve the drying efficiency and dryness.

The air knife dryer is the characteristic of the wind blade uniform high wind speed and automatic transmission device and the special design automatic wind (knife) drying equipment.

Working principle

Air knife drying machine is applied to different series of wind knife (such as universal air knife, stainless steel wind knife, precision air knife, curved knife wind, hot air knife, etc.), the characteristics of coupled with for dry material needed for the main body in the process of drying cooperate design, so as to achieve the purpose of drying in a timely manner. It in addition to the generally applied in the beverage bottle, beer bottles, cans, more can be used in tablet (such as glass, steel, etc.), drum, flexible packaging, batteries, small bottles (100 ml) or less, through special design can also be applied in the bottle, condensing bottle, big bottle (5 gal)

Air knife drying machine adopts mixing thermal cycle of hot air fan and knives, in addition to environmental protection and energy saving advantages of hot air circulation, and can direct heating, temperature control, adjustable air volume adjustment direction, quicker, more accurate and more evenly to hot air drying, heat shrinkable, effect of heat treatment.

Technical parameters

Equipment features

1. The high speed wind blows into the wind tunnel and causes the wind tunnel effect to enhance and maintain the high wind speed, making the water more easily blown away.

2. The wind groove can be selected with the top of the blowing/neck and the bottom of the blow, so that the drying can be finished once and the bottle cap is difficult to solve.

3. The wind groove can easily adjust the device according to the diameter and height of the bottle, making it more efficient and easier to adjust.

4. Adopt 304 stainless steel style groove and other accessories, etc.

5. With drainage and discharge (wet) air inlet, convenient for water and exhaust.

6. The wind trough (optional accessories) can be covered with a subtraction material and a transparent sound reduction mask (optional accessories). It is convenient to monitor and reduce the noise, and kill two birds with one stone.

7. There are many types and specifications for round bottles, round cans, square bottles, square tanks, large bottles, small bottles, and cold bottles for drying.
