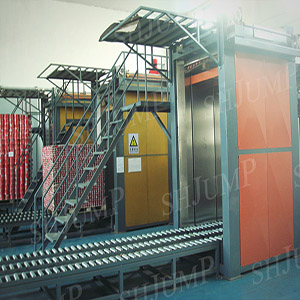

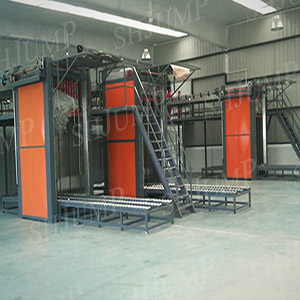

Device description

Used in food and beverage industry, chemical industry, etc. It is equipped with three - in - one filling line, etc., stacking of all kinds of bottles and boxes. The automatic operation of the palletizer is divided into automatic boxes, boxes, rows, piles, piles, piles, and piles, and stacks, stacks and stacks.

Working principle

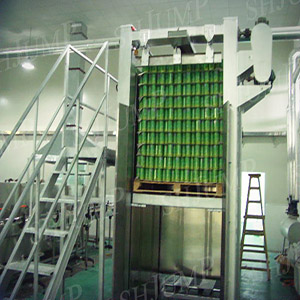

The forklift will fold the stack of empty cans on the tray conveyor, then the conveyor will be transferred to the pallet platform of the host. The stacking platform of the pallet is to send the positioning of the empty tank stack to the unloading height. After unloading the empty tank, the empty stack board will be lowered onto the conveyor. All the movements of rise and fall by a self-locking type lifting system device to push cans, push the whole layer of empty cans to net on the conveyor, and then return to prepare position, will continue to the next layer out. The entire motion positioning is controlled by the photoelectric switch, and can select the continuous action or the single recycle mode.

Technical parameters

Product name：Empty can depalletizers

Device model jpxd-100

Length 10500 x width 3000 x height 3500 (unit mm)

Processing capacity: 500-1200 cans (bottles) per minute

Adjust to the object phi 50- phi 153mm, high 50-270mm

The equipment applies to all kinds of metal cans, plastic bottles and glass bottles

Applicable range fruits, vegetables, medicinal materials, etc

Equipment features

1. Low inlet box, less space, large production capacity;

2. PLC control of the whole machine, fully automatic operation;

3. Suitable for various stacking and bottle types;

4. Multiple safety protection with touch screen control;

5. Using the high quality conveyor chain, the output segment can be arbitrarily extended;

6. Motor, cylinder transmission and control all adopt imported brand components;

7. Use 304 materials as far as possible.

8. Specially adapted to the product of code thermal shrink-wrap.

、
