Device description

This equipment is used to select and remove the sundries after cleaning the citrus, tomato, strawberry, apple, mango and other fruits, and can add spray tube to spray the material. All parts in contact with the food USES the food grade 304 austenitic stainless steel materials, roller conveyor, preventing the guarantee material conveying forward and rotates at the same time, the maximum to prevent undetection and health corner. Can adjust the cylinder spacing according to the fruit, prevent the leakage of fruit and the fruit. PLC automatic control, variable frequency speed regulation, smooth operation, noise not greater than 80DB. The detected objects can be directly transported to the designated place by the hydraulic channel under the float, clean and easy to manage. According to the structure can be divided into roller type, chain plate, plate type and so on to cooperate with the use of various materials.

Working principle

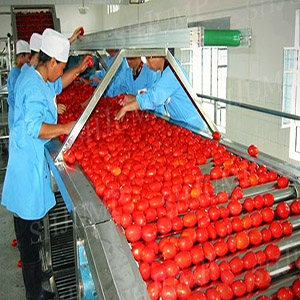

Upper using Φ 32 or Φ 48 stainless steel tube (according to the fruit diameter), drives the material forward, steel pipe can be rotation, make fruit grain of rotate 360 degrees, artificial will CiGuo after picking out put waste in the bucket, the lower will CiGuo out of the belt.

Technical parameters

Product name roll-type picker

Device model JPLM-100

Main material 304 stainless steel (or customized according to customer requirements)

Processing capacity: 0.5 tons per hour to 30 tons per hour

Size specification: 1250*500*700 to 6500*1600*900 (unit mm)

The equipment can be used to select and remove sundries from fruits and vegetables

Suitable for apple, strawberry, mango, pineapple, peach, apricot, tomato, etc

Equipment features

1. Adopt the food grade stainless steel scraper, which has the characteristics of long life, low failure rate, anti-carbule and low noise, etc.

2. The filtration hole seepage structure is used to facilitate water seeping out of the water so that the equipment can run more smoothly.
