Device description

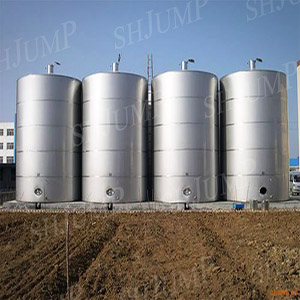

Including single - layer tank series, double - double vertical mixing tank series, three - layer vertical stirring cold - hot tank series. It can be used for storage tanks, mixing tanks, storage tanks, water storage tanks, etc., for food, dairy products, fruit juice drinks, pharmaceutical chemicals and biological engineering. Double tank insulation function, three-layer tank with heat preservation and heating function.

Working principle

The structure design is very humanized and can be operable. The transition section of the inner wall of the tube USES the arc transition to ensure that the health has no dead Angle.

Technical parameters

Effective volume L cylinder size D x H

(mm) total height H

(mm) motor power (kw) mixing speed (r/min)

500 840 * 1000 2750 38 0.55

The rotary speed is 35, 43, 60, and the infinitely variable speed reducer or double speed reducer can be used

It's 800, 950 times 1220, 3000, 38, 0.55

900 1010 times 1220, 3000, 38, 0.55

1000 1060 x 1500 3150 51 0.75

15001160 x 1500 3350 51 0.75

1340 x 1500 3410 51 1.1

3000 1410 times 2000, 451, 1.5

4000 1620 times 2000, 4250, 51, 1.5

So it's 5,000, 1810 times 2000, 4300, 51, 2.2

6, 000, 1980 * 2000, 4550, 51, 2.2

7000 1930 x 2440 5000 51 2.2

8000 2060 times 2440 5000 51 3

9000 2180 * 2440 5050 51 3

10,000 2300 * 2440 5050 51 3

12,000 2270 x 3000 5600 51 4

15, 2530 times 3000, 5700, 51, 4

20,000 2640 x 3660 6400 55.5

Equipment features

Quick open manhole, various forms of CIP cleaning device, anti-fly bug sanitary breathable hood, adjustable

Trig leg, removable feeding tube kit, thermometer (non-standard custom), ladder (non-standard custom), paddle agitator, liquid level gauge and liquid level control (non-standard custom), anti-vortex sheet.
