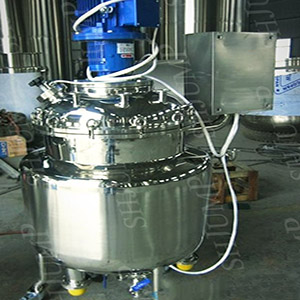

Device description

It is suitable for the fermentation, brewing, seasoning, pharmaceutical, chemical and fungus culture of yogurt and lactobacillus drinks. It can be heated, heated and cooled, and is used for the whole closed sanitary fermentation equipment.

Working principle

Seed tank is using high speed rotating liquid distribution into a uniform film by evaporation or distillation of a highly efficient evaporation, distillation equipment, can also be used for deodorization, deaeration reaction and heating, cooling unit operations, such as small experiment digestion tank can be widely applicable to the Chinese and western pharmaceutical, food, light industry, petroleum, chemical industry, environment protection, etc.

Technical parameters

Model JP - Z

JP - 600 Z

JP - 1000 Z

JP - 1200 Z

JP - 1500 Z

2000

Class capacitance

let

device

Internal design pressure (MPa) atmospheric pressure

Design temperature (15 ~ 126 ℃)

Constant pressure of test pressure (MPa)

Main material: 1Cr18Ni9Ti

The storage medium melts the sugar solution

Volume (L) 600, 1200, 1500, 2000

clip

sleeve

Inner diameter (mm) 1000 1100 1200 1300 1500

Design pressure (MPa) 0.4

Design temperature (142 ℃)

Test pressure (Mpa) 0.6

Main material: 1Cr18Ni9Ti

Storage medium water, steam

Motor power (KW) 0.4 0.75, 1.752.2

Overall dimensions

1500 x 1150 x

1700 * 1280 * 1700

1800 * 1300 * 1800

2000 * 1550 * 2000

2200 * 1650 * 2200

2400

Weight (Kg) 550, 725, 800, 850, 1000

Equipment features

1. The fixed type mainly consists of tank and foot.

2. Tank inner tank and seal head are made of high quality stainless steel.

3. The clamping and reinforcing rib are composed of A 3 plate and the insulation layer is made of glass asbestos.

4. Outer foreskin, and abrasion fish scales, adopt high-quality 304, 1Cr18Ni9Ti materials.

5. The mixer and the lid seal are made of mechanical seals.

6. The top and bottom of the can are connected with stainless steel studs. The gasket is sealed with XB250 non-toxic rubber.
