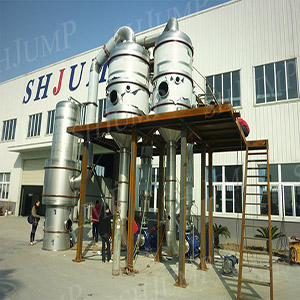

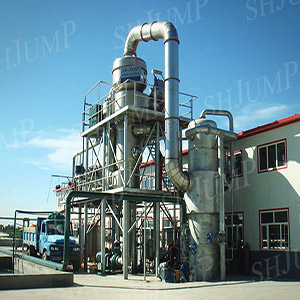

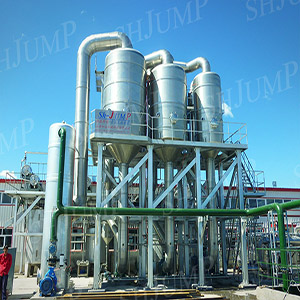

Device description

In order to improve the effect of gas-liquid separation, and have a function of defoaming, prevent entrainment, used the three-stage separation, capture mode: one is steam-liquid tangent into the evaporation tank use of centrifugal force and tank settlement; Second, the top of evaporator adopts high efficiency air filter filter layer. Three is to establish the impact type liquid precipitator, thereby preventing the material liquid is secondary steam entrainment loss, even for bubble generating material liquid containing (such as soap liquid medicine) can achieve satisfactory separation effect.

Working principle

The WZ type vacuum evaporator is mainly composed of tube heater, evaporating tank, circulating pipe and other auxiliary equipment.

When the liquid is heated to the boiling point in the tube of the heater, some water vaporizes, and the heat energy is converted into kinetic energy of upward movement. Gas-liquid mixture at the same time because of the heat tube and circular tube not produced a severe difference between boiling material liquid, under the induction of swelling kinetic energy and heavy difference, produced the material liquid natural circulation (in heating tube of material liquid circulation velocity is less than 1 m/s), the material liquid by the more heat, boiling the better, the greater the speed loop. Because it is under the effect of vacuum evaporation, the material liquid evaporation temperature can be controlled to some extent below 50 ℃. The vaporized secondary steam is carried away by the spray and condensation of the water jet after the trap and the trap. Evaporation tank material liquid after centrifugal spinning along the outer loop back to the bottom of the heater tube, recirculation heating evaporation, so cyclic heating evaporation (about 15 to 20 minutes), when meet the requirements of concentration, began to continuous discharge, at the same time also continuous feeding, so as to form a continuous vacuum concentration operation.

Technical parameters

The product name forced circulation vacuum evaporator

Device model jpve-001

Main material 304 stainless steel (or customized according to customer requirements)

Processing capacity 4 tons/hour to 10 tons/hour (or customized according to customer requirements)

Size specification: 11000 * 7000 * 8300 to 13000 * 9000 * 9000 (mm)

The equipment is applicable to vacuum and low temperature evaporation concentration process of liquid materials

Applicable range of health drinks, food, Chinese and western pharmaceutical, biochemical pharmaceutical, agricultural and sideline products deep processing, fine chemical, light industry, etc

Equipment features

1. For easy cleaning, the top of the heater is set at the top of the heater.

2. The top of the air filter filter in the evaporation tank is equipped with a ring spray cleaning water pipe.

3. Install manhole in the evaporator tank to clean the tank.

4. To facilitate the observation in operation, lamp holes and mirrors are set on the top of the heater and the evaporating tank.

5. Especially for sensitive juice.
