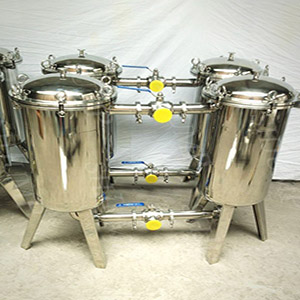

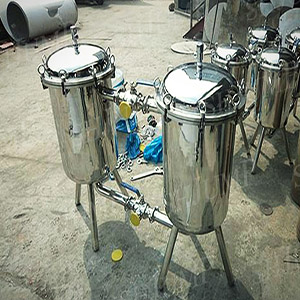

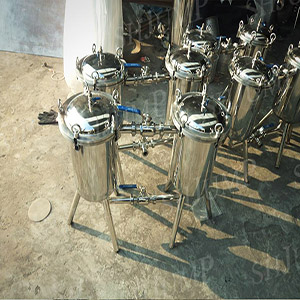

Device description

The equipment is made of high quality stainless steel, it is composed of two cylinders, the single layer stainless steel welding structure, inside and outside surface polishing, the top is equipped with the air release valve, so that the gas can be used when working. The pipe joint adopts the expansion joint and 0.3Mpa water pressure test, the three-way external screw plug is flexible, the device is compact, easy to operate and easy to maintain. The two filters will be used alternately, and the filter cloth will be changed without stopping, and the filter screen number will be customized according to the user's requirements, which is suitable for the long-term continuous use of fruit and vegetable processing plants.

Working principle

Double filter USES the two three-way ball valve, the two monocular filter assembly on a stand, don't have to stop when cleaning filter, ensure the continuous work, it is not preferred parking line filter, filtering element of this filter, in addition to the stainless steel filter, may also have quality honeycomb degrease cotton fiber, can filter out particles of the particle size of more than 1 mu, this filter is use monocular, at this time only need to remove the stand together, the rest of the size remains the same.

The inner and outer surface of the double filter is polished and the strainer is equipped with a stainless steel strainer and a strainer to support the basket; The top is equipped with a vent valve to filter the air in the filter. The upper cover and the strainer are connected with the fast open structure, which is more convenient to clean (replace) the screen, and the three adjustable legs can keep the filter on the ground smoothly. Connect the pipe line with live connection or clamp connection mode, the inlet and inlet valve adopts the three-way ball valve to open and close, withstand pressure and temperature, operate flexibly and conveniently, no liquid leakage is more hygienic.

Technical parameters

Device name dual filter

Equipment model JP-DF series

Main material food grade SUS304 high quality stainless steel (or customized according to customer requirements)

Ability to handle customer's production line

Size specification according to customer requirements

The equipment is used for purification of solid impurities that are invisible to the naked eye

Applicable to dairy, jam, fruit juice drinks

Equipment features

1. Large amount of pollution;

2. Fast filtration;

3. Low cost of use;

4. Easy operation and other characteristics.
