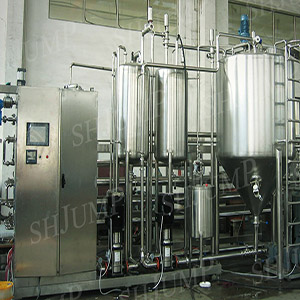

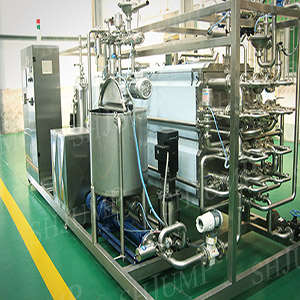

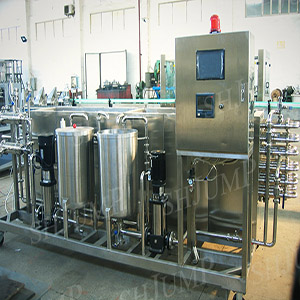

Device description

The newly developed energy-saving tube sterilizer, including casing and tube, is designed by huang dongsheng engineer, a famous expert in the industry, to obtain nine product patents. Make full use of the heat exchange of materials to achieve the purpose of energy conservation. Fully automatic ultra high temperature column tube sterilizer is our company combined with foreign advanced technology, and according to our company years of experience in the industry development and development. The equipment is widely used in the sterilization of liquid food such as fruit juice and milk, tea beverage and milk.

The whole system adopts programmable control, and the operating system adopts the image machine interface, so as to grasp the operation status of each unit of the equipment at any time. The control system controls the temperature in real time, collects and stores the temperature in real time, and all the valve parts and electronic control system adopt famous foreign famous brands such as spasek, Siemens, schneider and omron. It has the advantages of easy cleaning, advanced structure and reliability.

Working principle

Ultra-high temperature sterilizer can simultaneously heat, heat and heat the material, heat recovery and cooling. In the preheating segment and the sterilization section, the heat can be fully recovered. The sterilization equipment USES multi-stage liquid or slurry material for heating, sterilization and cooling, which can improve the efficiency of heat energy. In the whole process of sterilization, the temperature of the material is controlled in full automatic mode. If ultra-high temperature sterilization machine is used, it can control the discharge temperature according to the user demand, and adjust the temperature to the numerical value of the sterilized filling machine.

Technical parameters

Product model JP - LS - 0.5 JP - JP - LS LS - 1-3 JP - LS - 5 JP - LS - 10

Production capacity 500L/H 1000L/H 3000L/H 5000L/H 10000L/H

Material inlet temperature 25 ℃ - 45 ℃ to 25 ℃ - 45 ℃ to 25 ℃ - 45 ℃ to 25 ℃ - 45 ℃ to 25 ℃ - 45 ℃

Sterilization time 2-120s or according to demand adjustment

Sterilization temperature 95 ~ 138 ℃ of 95 ~ 138 ℃ of 95 ~ 138 ℃ of 95 ~ 138 ℃ of 95 ~ 138 ℃

Material outlet temperature 25 ℃ and 40 ℃ to 25 ℃ and 40 ℃, 25 ℃ and 40 ℃ to 25 ℃ and 40 ℃ to 25 ℃ and 40 ℃

Steam pressure 0.6mpa 0.6mpa 0.6mpa 0.6mpa

Steam consumption ~ 100Kg/h ~ 150Kg/h ~ 300Kg/h ~ 700Kg/h ~ 1000Kg/h

Power 10KW, 18KW, 25KW, 48KW

Dimensions (mm) 3500 x 1600 x 1500 x 2200 x 2250 x 1700 5500 x 1, 500 x 2, 500 x 2, 500 x 2, 500 x 2, 2, 2, 2, 3, 2, 3, 2, 3, 2, 3, 2, 3, 1, 3, 2, 3, 1, 3, 1, 3, 1

The total weight of the equipment is 1200kg, 2000kg 2800Kg 3800 Kg 7000 Kg

Equipment features

1. 304 main structure of stainless steel;

2. Energy conservation and environmental protection (the company independently developed heat exchange system and thermal recovery system);

3, stable temperature control, fluctuate less than 1 ℃;

4. All connecting parts shall have steam protection to prevent the re-contamination of the joint site;

5. In the process of material and water switching, it can save more than 200 kg each time.

6. Stable and thorough sterilization;

7. Independent control cabinet, PLC control of man-machine interface;

8. CIP and SIP can be synchronized with aseptic filling machine.
