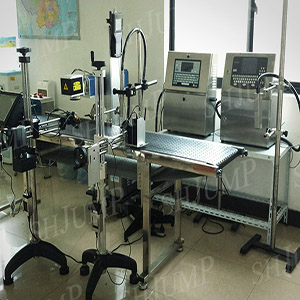

Device description
A spreader is a device that is controlled by software and is marked on a product by non-contact.
Working principle
The spreader is a high-tech product integrating electromechanical integration with the principle of the deflection of high voltage electric field and the printing of graphic text and digital in the surface of various objects. Products are widely used in food industry, cosmetic industry, pharmaceutical industry, automobile and other parts processing industry, electric wire and cable industry, aluminum plastic pipe industry, tobacco and alcohol industry and other fields. It can be used to print production date, batch number, bar code and trademark pattern, anti-counterfeiting mark and Chinese words. It is a powerful equipment to implement health law and promote packaging modernization.
Technical parameters
Product model JP- pm-017
The main engine is high and wide and heavy
555mm 300mm 320mm 26kg (net weight)
The shower head is high and wide and heavy
43 mm 185 mm 45 mm 1.8 kg
The nozzle can be used to print the number of aperture ink frequency
4. 70 mu m white ink 88kHZ
Chassis stainless steel IP54
Case door is 300 mm
Protection grade IP54
Chassis material stainless steel
Noise level less than 60dB (A)
Cover the tip of the spray head 100mm
There is no special requirement for installation direction
Can I change it quickly
Spray head to product surface distance from 2mm-25mm
Throat bend radius 200mm (standard)
Pipe diameter 20mm
Throat length 2500mm (standard)
Power supply range
Power supply pressure 220V,50HZ or 110V,60HZ
Power 120 w
The environmental temperature 5 ℃ and 40 ℃
Ambient humidity maximum 90% air relative humidity, no condensation
Characteristics of the equipment
1. Clear and persistent handwriting: computer control, accurately print out the required number and text. Patterns and barcodes, etc.
2. High degree of automation: automatic implementation date. Batch and number change to achieve the unmanned operation of the printing process.
3. Wide application: can match any production line. It can be used in plastic, glass, paper, wood, rubber, metal and other materials, the surface of different forms of the printing mark, the date of the factory, the instructions, the batch number, etc.
4. Quick and convenient programming: input the required number, text, pattern and number of lines through the computer or the editing machine, modify the printed information, and only press the number key to complete.
5. The character size can be adjusted: the width and height of the font can be adjusted, and the font can be arbitrarily bold.
6. The number of printing lines can be adjusted: the number of printing lines can be adjusted at 1-14, and can be matched with any combination.
7. The printing speed is extremely fast: the fastest can be printed in 1950 character/second or 45 meters per minute.
