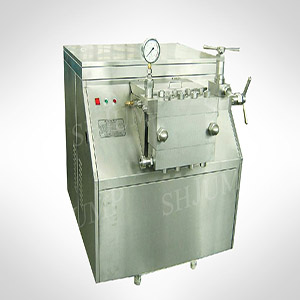

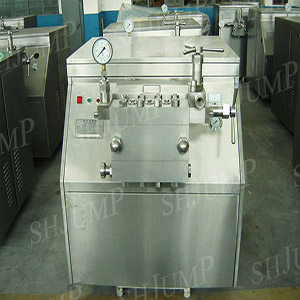

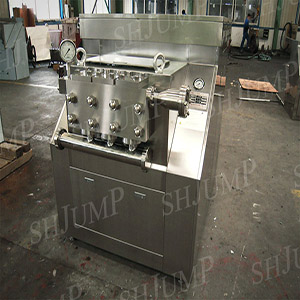

Device description
High pressure homogenizer rely on three repeated movement of the plunger and produce great pressure, when the plunger movement back, feed valve opens, the material suction, when the piston to move forward, the valve is closed, the valve is open, the material is pressed into the area of high pressure homogenizing valve, through a, level 2 homogeneous valve homogeneous, emulsification, material go through the discharge port. The device adopts the stainless steel system, due to the sample surface can be separated effectively and be included microbial flat samples, the samples in a sterile homogeneous bag, don't contact with the instrument, with homogeneous soft samples, no pollution, no damage, no heat, no need to sterilization, do not need to wash the dishes, meet the rapid, accurate and good repeatability.
Working principle
The high pressure homogenizer is a special equipment for the refinement and high pressure transportation of liquid materials. For viscosity less than 0.2ps.s, the temperature is lower than that of liquid (liquid-liquid or liquid-solid). The device through an adjustable current limiting aperture, pressure loss in the process of expansion, explosion, shear and comprehensive effect, such as high-speed impact will be crushed into particles and oil droplets in the liquid is small size, at the same time establish the ideal emulsion and dispersion. It is a combination of ultrasonic pulverizer, colloid mill, ball mill and jet engine. The product stability, consistency, mixing, absorption, nutrition, shelf life, taste, color and protection can all be realized in homogeneity.
Technical parameters
Type specification flow
(L/H) maximum working pressure
(Mpa) work pressure (Mpa) weight (㎏)
Profile ruler (cm)
Power (Kw)
JP- GJB5000-20, 020, 0~ 16, 1500, 130 x 150 x 150 37
JP-GJB2000-25 2000 25 0~20 1150 x 105 * 140 15/18.5
JP- GJB2500-25, 25, 0~ 20, 125, 130 x 106 x 145 22
JP- GJB3000-25, 000, 25, 0~ 20, 130 x 110 x 145 22/30
JP- GJB4000-25, 000, 25, 0, 140, 130 x 125 x 150 37
JP- GJB2000-30, 30, 0~ 24, 1350, 130 x 125 x 145 22
JP- gjb1000-40, 40 0~ 32, 120 * 105 * 140 15
JP-GJB1500-40 1500 40 0~32 1350 130 x 120 x 145 22
JP-GJB2000-40 2000 400 ~32 1400 130 x 120 x 145 30
JP- GJB2500-40. 40 0~32 1500 130 x 125 x 150 37
JP- gjb1000-60, 60, 0, 0 48, 1350, 130 x 120 * 145 22
JP- GJB1500-60, 0, 0, 48, 1500, 130 x 150 x 150 30
JP- GJB1000-80, 80, 0~64 1500 130 x 150 30
JP- GJB5000-25, 000, 25, 0, 20, 2000, 210 * 110 * 105 45
JP- GJB6000-25, 000 250 ~ 20, 250 x 130 x 110 55
JP- GJB7000-25, 000 250 ~20 2550 * 130 x 110 65
Equipment features
1. The high pressure homogenization mechanism enables the material to be refined and mixed with the triple effect of extrusion and pressure expansion. The equipment is an important equipment for food, dairy, beverage and other processes.
2, to milk, soybean milk and other liquid milk, in homogeneous under high pressure, can make the liquid dairy fat ball significantly refine, make its products after eating easy to digest absorb, improve the edible value;
3, used in the dairy, glue, fruit juice, grout, such as production, can help prevent or reduce the layered material liquid, appearance of material liquid, the color is more bright-coloured, fragrance more thick, taste more alcohol;
4. All contact surfaces of materials are made of special anti-acid stainless steel materials, which are in accordance with hygienic design and can be cleaned in situ with cleaning agent circulation and water sanitation.
5. The high shear homogenizer fully realizes the dispersion, emulsification, homogenization, dissolution and reaction of various viscosity materials, so that you can get the best in production.
