Device description

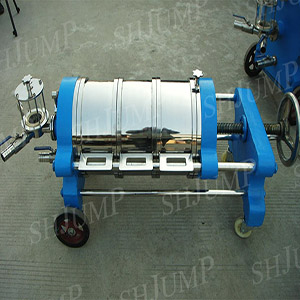

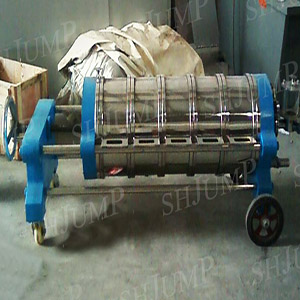

Diatomite filter: diatomite is the main medium, and the filtration device of water suspension particles, colloids and other impurities of the swimming pool is removed by using the micro and porous properties of diatomite particles.
Working principle
In diatomite filtration, diatomaceous earth itself has many natural holes, filter layer of irregular channel is long, and concentrated distribution in the filter cake layer, which can contain more fine particle adsorption, thus improve the quality of the filter. Filtration is made up of sieving and adsorption. In operation, the diatomite subprecoat and filter layer adsorb on the filter cloth, forming an incompressible and numerous filter cake layer with numerous intersecting microporous channels. The large impurities in filtrate are trapped in the outer surface of the filter cake because they cannot pass through the relatively small filter holes. The small particles enter the filter cake layer and are trapped in the convoluted channels, known as the adsorption process. To obtain the clarification through the liquid.
Technical parameters
Size of type size
(㎜) through the filter area (㎡) valve diameter theory flow (T/H) work pressure (Mpa) to match the pump model (price plus)
The JPK500-A 2450 x 750 x 750 x 850 5.5.9 Dg32 13-15 is less than or equal to 0.3 jp20-25
Jpk500-b 1950 x 750 x 850 8.5 Dg32 8-10 less than 0.3 jp20-25
JPK400-A 2350 x 680 x 800 9.8 Dg32 9-12 is less than or equal to 0.3 jp20-25
JPK400-1840 x 680 x 800 5.1 Dg32 Ⅰ 6-8-0.3 JP10-25 or less
JPK330-1700 x 600 x 750 3.4 Dg32 Ⅱ 3-5 0.3 JP5-25 or less
JPK330-1600 x 600 x 750 2.5 Dg32 Ⅲ 2-4 0.3 JP5-25 or less
JPK250 1100 x 350 x 450 2 Dg32 1-3 is less than 0.3 jp3-20
JPK220 950 * 300 x 420 1.1 Dg32 0.5-2 is less than or less than 0.3 jp3-20
Equipment features
1. The filtration precision is high, which can reach 1-2 micrometers, which can filter e. coli and algae, and the turbidity of the filtered water is 0.5 ~ 1 degree.
2. The area is small, the equipment is very low, and the volume is only 1/3 of the sand filter machine, which can save most of the construction investment in the machine room.
3. Long service life, high corrosion resistance of filter elements, and the service life of a-1 filter is 20 years; A-1 reversible diatomite pool filter will not need to be replaced for 10 years, and the service life will be more than 20 years.
