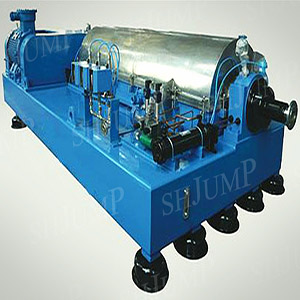

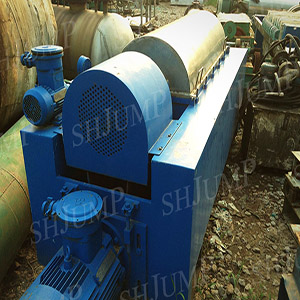

Device description
The horizontal spiral centrifuge can be used to clarify and separate the materials of 0.002-3mm and to separate dehydration or to grade the solid phase particles of 1um- 5um. It has the characteristics of wide application range, continuous work, high handling capacity, low cost and convenient maintenance. It is the preferred equipment for solid liquid separation. Widely used in chemical industry, light industry, medicine, food, paper, mining and other industries.
Working principle
Horizontal spiral centrifuge is the use of solid-liquid proportion difference, and rely on centrifugal field to expand the thousands of times, the solid phase was settling in under the action of centrifugal force, so as to realize the solid-liquid separation, and in particular, under the action of eduction body, respectively. The whole feed and separation process is continuous, closed and automatic. The high-speed rotating unperforated drum has the concentric mounting of the feeding spiral, the two rotating at a certain differential velocity, the speed differential is generated by the differential. Within the slurry through the feeding tube in the center of the introduction of the spiral tube into the drum, after initial acceleration under the action of centrifugal force, the heavier solid deposition in the drum wall form sediment layer, push by the spiral to drum cone section further dehydration after the small end slag discharging mouth; And the lighter liquid phase forms an inner liquid ring that is discharged from the large end of the overflow nozzle.
Technical parameters
Product name horizontal spiral centrifuge
Equipment model jpsc-100
Main material food grade SUS304 high quality stainless steel (or customized according to customer requirements)
Processing capacity: 0.5 tons per hour to 5 tons/hour (or customized according to customer requirements)
Dimensions: 950*500*700 to 2500*1600*900 (unit mm)
The equipment is used for the dehydration of juice and pulp fiber and the clarification of juice
Suitable for all kinds of fruit and vegetable juice, etc
Equipment features
1. With high precision, compact structure and stable operation.
2. Main bearing adopts imported bearing to ensure its running accur. .
3. The material contact department is made of high quality stainless steel materials.
4. The whole machine has various safety overload protection devices to ensure safe production.
5. Large diameter ratio, high speed, with a variety of angles of drum cone structure.
